The SeedStar application is used to monitor the status and make adjustments to the seed meters, drive systems, and other systems linked to the SeedStar software. Calibrations, setup procedures, and diagnostics are also accessed through the application.
|
Status— displays statuses of the seed meter drives. Select to access the requirements for engagement of the drives. |
Status of Drives |
NOTE: To view drive status from a run screen, use the SeedStar shortcut key. See Shortcut Keys at the end of this page for more information.
Target Population— displays the population targets. There are two modes for target population. Select the basic or advanced mode under Population Setup in Advanced Settings.
SeedStar - Overview— displays the population performance for all the row units. Select to access multiple pages with performance details related to the seed meter and row unit features.
SeedStar - Overview
|
NOTE: To enable or disable Curve Compensation, see Diagnostics and Calibrations. |
Curve Compensation |
Section Status— displays the status of the planting sections. Select to control and adjust the sections.
Section Status

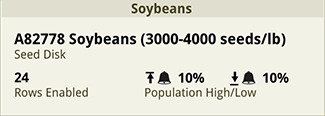

Setup— displays the seed meter configuration for the selected crop. Select to adjust the settings.
Setup
Utilities— contains other features and options that your implement has installed.
|
Frame Control— allows you to control multiple frame functions. |
Frame Control |
|
Diagnostics & Calibrations— view diagnostic information for various implement systems or perform a sensor calibration. |
Diagnostics & Calibrations |
|
Advanced Settings— access further adjustments and less common settings. |
Advanced Settings |
Advanced or basic target population selection
Selection for the Fast Start auto-enable as the implement is lowered
Selection to override Section Control while using Fast Start
Ground speed source selection
Implement frame start and stop height settings
Pause timer for active downforce
Selective control valve assignments for automated hydraulic functions
Master On/Off for the Easy Adjust row cleaners
Selection to enable leak detection in the closing wheel system
Selection to show or hide the up pressure for the Easy Adjust row cleaners
The central commodity system (CCS) blower override and agitator control
|
Settings Manager— saves the values and settings at the moment Save is selected. Use different file names to save multiple configurations. The values saved do not include the crop type, seed disk (bowl), or advanced seed populations. |
Settings Manager |
NOTE: The settings are saved on the tractor CommandCenter. If another tractor is connected, save new entries for the tractor settings.
Select the Settings Manager application to perform the following:
Select a saved entry to enable those settings
Edit a saved entry
Save a new entry
NOTE: Overwritten settings are not retrievable.
Modules for this application can be added to run pages using Layout Manager.
Example:
Implement Overview— view the row unit performance.
Implement Overview
NOTE: Different modules can be available for your application.
|
Shortcut keys for this application can be added to the shortcut bar using Layout Manager. SeedStar Application— quick access to implement applications. NOTE: Different shortcut keys can be available for your application. |
SeedStar |
Quick Start— automated feature that is enabled when the planter is lowered while stationary. The seed meters engage when planter wheel motion is detected. The drive motors operate based on a 1.6 km/h (1 mph) speed. The motors operate at the 1.6 km/h (1 mph) speed for 6 seconds or until the ground speed reaches 2.4 km/h (1.5 mph).
NOTE: Quick Start is not a shortcut key, but messages appear on the screen when Quick Start is activated. The Fast Start shortcut key becomes available in messages when Quick Start is activated.
|
Fast Start— reduces a skip when the planter starts from a stop. Fast Start immediately dispenses seed for up to 6 seconds after being activated. If no forward motion is detected after 6 seconds, Fast Start times out and all seed delivery stops. |
Fast Start |
|
Dual Target Population— allows you to toggle between two Target Populations without leaving the current page. |
Dual Target Population |
|
Multiple Target Population— allows you quick access to Target Populations selection overlay. |
Multiple Target Population |
NOTE: The target population key automatically changes. The dual target population key appears when only two populations are enabled.
