Machine Profile settings are important for accurate performance of John Deere AMS applications, such as AutoTrac and Section Control.
NOTE: If display detects machine, some information is automatically set by machine control units.
Profile name, machine type, and serial number are displayed on General tab.
GPS Lateral OffsetMeasure the lateral distance (left or right) from the center line of the machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of the center line of machine. To input a measurement other than 0.0, Left or Right must be selected.
The following applications require GPS Lateral Offset settings:
Guidance
Coverage Map
Instructions for measuring GPS Lateral Offset
GPS In-line OffsetMeasures in-line distance from center of track to center of GPS receiver.
The following applications require GPS In-line Offset settings:
Documentation
Section Control
Guidance
Instructions for measuring GPS In-line Offset

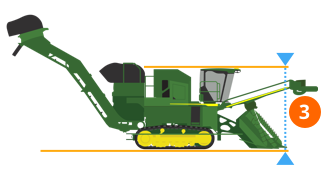

GPS HeightMeasure the vertical distance from GPS receiver to ground. Measure from the top of green portion of GPS receiver to ground.
Instructions for measuring GPS Height
|
Type - Displays the header type. |
|
|
Width - Displays the header width. |
|
Work Point value defaults to 0 and cannot be changed.
Connection OffsetMeasure the in-line distance from the center of the track to front rigid connection point.
The following applications require Connection Offset setting:
Coverage Map
Documentation
Overlap Control
Instructions for Measuring Connection Offset
|
Select Save button to store settings from all tabs and close Machine Profile application. Selecting Save is not required when switching between tabs. |
|
Default machine profile settings are stored in machine control units. Changes to these settings are stored in the display.
|
To reset profile to factory defaults, select Reset Profile button. |
|
