Measure Connection Offsets

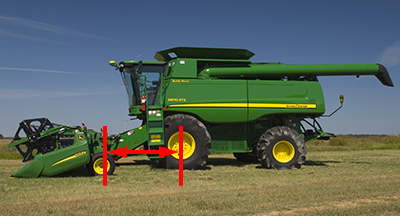

Measure the in-line distance from the non-steering axle to feeder house face plate.

Measure the in-line distance from the non-steering axle to feeder house face plate.

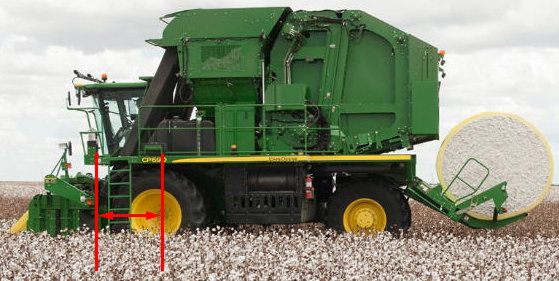

Measure the in-line distance from the non-steering axle to the rear of the row units.

Measure the in-line distance from the front axle to the front rigid connection point.

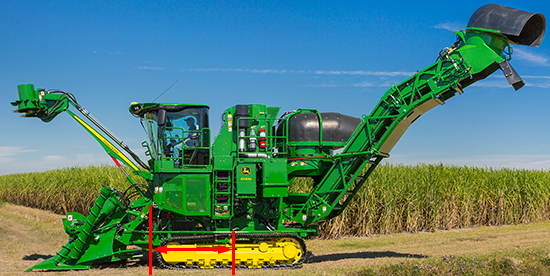

Measure the in-line distance from the center of the track to front rigid connection point.

Measurement Best Practices

  1. Measure while machine and implement are in a straight-line, operating position.

  2. Hold tape measure straight in vertical or horizontal directions.
