Row-Crop Tractor

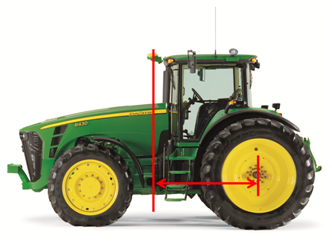

Measure from the center of the GPS receiver to the center of the rear axle.

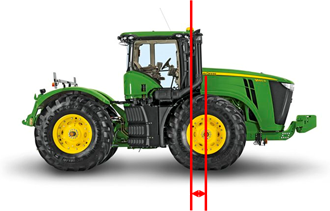

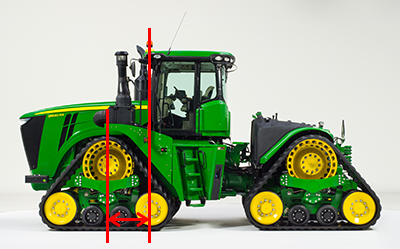

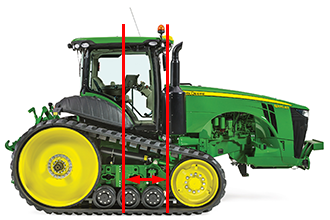

Measure from the center of the GPS receiver to the center of rotation.
GPS Receiver to Center of Rotation
Measure from the center of the GPS receiver to the rear axle.
GPS Receiver to Rear Axle

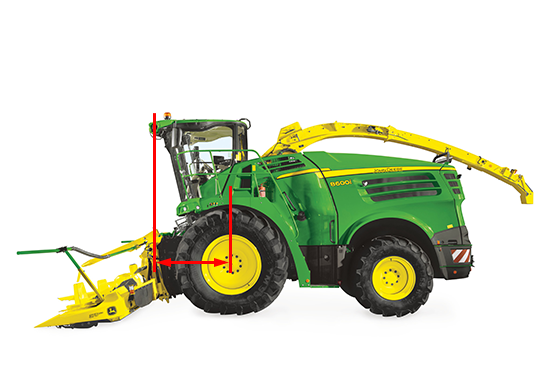

Measure from the center of the GPS receiver to the center of the front axle.

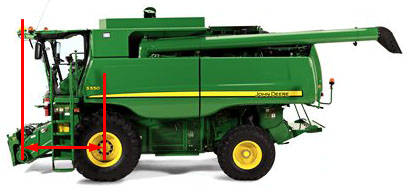

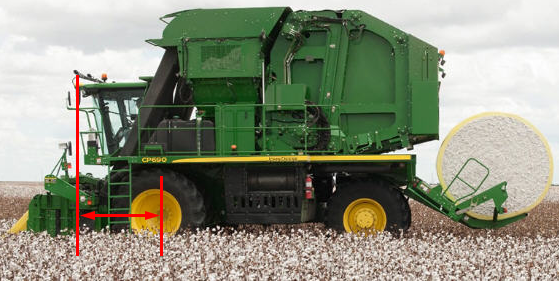

Measure from the center of the GPS receiver to the center of the front axle.

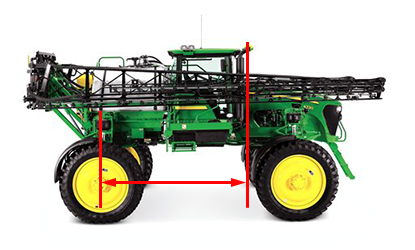

Measure from the center of the GPS receiver to the center of the non-steering axle.

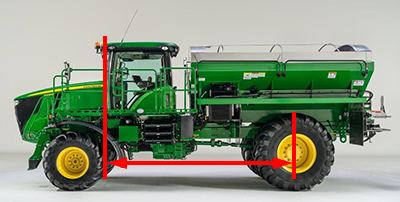

Measure from the center of the GPS receiver to the center of the non-steering axle.
Measure from the center of the GPS receiver to the center of the front axle.

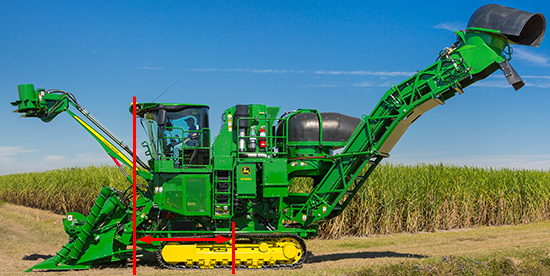

Measure the in-line distance from the center of the track to the center of the GPS receiver.
Measure while the machine and implement are in a straight-line, operating position.
Hold the tape measure straight in a vertical or horizontal direction.
