SeedStar | Overview | Row Cleaner | Setting

Row Cleaner | Setting allows you to adjust the target value for the row cleaner preset currently selected on the Row Cleaners page.

Items Accessible on Row Cleaner | Setting Page:

CAUTION: Avoid injury from row cleaner movement. Verify that everyone is clear of the row cleaners before making adjustments.

The slide bar provides a visual representation of the pressure setting shown in the input box, not the position of the row cleaners. The row cleaners on the wings and center frame adjustments are shown separately unless you synchronize them.

NOTE: Up Pressure only appears when you have Up Pressure Adjustment enabled in Advanced Settings.

Actual Pressure— is the visual indicator for the actual pressure on the row cleaner, not the row cleaner position.

Actual Pressure

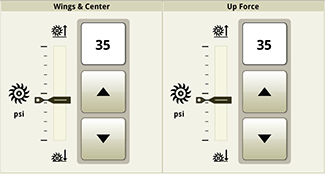

Synchronized Wings and Center

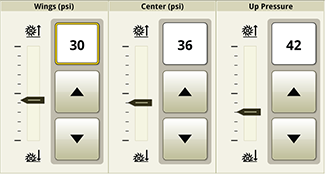

Unsynchronized Wings and Center

Synchronize— displays and adjusts the down pressure on the wing and center frame row cleaners to the same value. Select to synchronize.

Synchronize Wings and Center Frame

Unsynchronize— displays and adjusts the wing and center row cleaners separately. Select to unsynchronize.

Unsynchronize Wings and Center Frame

Procedure to Modify:

Select an up or down arrow button to adjust the value. Both the slide bar and the value in the box change by the increment entered in Advanced Settings.

Alternative Procedure to Modify:

  1. Select the box (showing the pressure setting) so the yellow outline appears around the box.

Input Field

  1. Use the dial on the navigation bar to adjust the value.

  • Turn the dial clockwise to increase the value.

  • Turn the dial counterclockwise to decrease the value.

Navigation Bar Adjustment Dial
