GPS Lateral Offset

Measures lateral distance (left or right) from center line of machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of center line of machine. To input a measurement other than 0.0, Left or Right must be selected.

The following applications require GPS Lateral Offset settings:

• Guidance

• Coverage Map

Instructions for measuring GPS Lateral Offset



GPS In-line Offset

Measures in-line distance from center of non-steering axle on machine to center of GPS receiver.

The following applications require GPS In-line Offset settings:

• Documentation

• Section Control

• Guidance

Instructions for measuring GPS In-line Offset



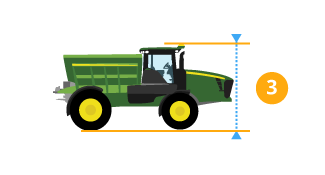

GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Combine

GPS Lateral Offset

Measures lateral distance (left or right) from center line of machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of center line of machine. To input a measurement other than 0.0, Left or Right must be selected.

The following applications require GPS Lateral Offset settings:

• Guidance

• Coverage Map

Instructions for measuring GPS Lateral Offset



GPS In-line Offset

Measures in-line distance from center of non-steering axle on machine to center of GPS receiver.

The following applications require GPS In-line Offset settings:

• Documentation

• Section Control

• Guidance

Instructions for measuring GPS In-line Offset



GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Sprayer

GPS Lateral Offset

Lateral offset is the lateral distance from center point of machine to center point of the GPS receiver.

The following applications require Lateral Offset setting:

• Guidance

• Coverage Map

Instructions for Measuring GPS Lateral Offset



GPS In-line Offset

In-line offset is the in-line distance from rear axle to the GPS receiver.

The following applications require In-line Offset setting:

• Documentation

• Section Control

• Guidance

Instructions for Measuring GPS In-line Offset

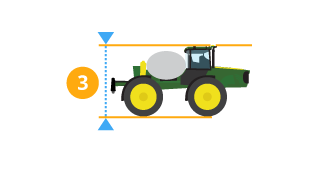

GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height



Dry Spreader

GPS Lateral Offset

Lateral offset is the lateral distance from center point of machine to center point of the GPS receiver.

The following applications require Lateral Offset setting:

• Guidance

• Coverage Map

Instructions for Measuring GPS Lateral Offset



GPS In-line Offset

In-line offset is the in-line distance from rear axle to the GPS receiver.

The following applications require In-line Offset setting:

• Documentation

• Section Control

• Guidance

Instructions for Measuring GPS In-line Offset



GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height



Self-Propelled Forage Harvester

GPS Lateral Offset

Measure the lateral distance (left or right) from the center line of the machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of the center line of machine. To input a measurement other than 0.0, Left or Right must be selected.

The following applications require GPS Lateral Offset settings:

• Guidance

• Coverage Map

Instructions for measuring GPS Lateral Offset



GPS In-line Offset

Measures the in-line distance from center of the non-steering axle on the machine to center of GPS receiver.

The following applications require GPS In-line Offset settings:

• • Documentation

  • Section Control

  • Guidance

Instructions for measuring GPS In-line Offset



GPS Height

Measure the vertical distance from GPS receiver to ground. Measure from the top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height



Sprayer - Front Boom

GPS Lateral Offset

Lateral offset is the lateral distance from center point of machine to center point of the GPS receiver.

The following applications require Lateral Offset setting:

• Guidance

• Coverage Map

Instructions for Measuring GPS Lateral Offset



GPS In-line Offset

In-line offset is the in-line distance from rear axle to the GPS receiver.

The following applications require In-line Offset setting:

• Documentation

• Section Control

• Guidance

Instructions for Measuring GPS In-line Offset



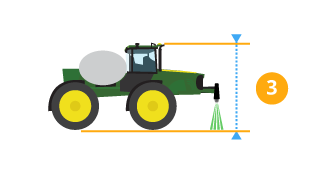

GPS Height

Height offset measures the vertical distance from the GPS receiver to the ground. Measure from the top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Truck

GPS Lateral Offset

Lateral offset is the lateral distance from center point of the machine to center point of the GPS receiver.

The following applications require Lateral Offset setting:

• Guidance

• Coverage Map

Instructions for Measuring GPS Lateral Offset



GPS In-line Offset

In-line offset is the in-line distance from fixed axle to the GPS receiver.

The following applications require In-line Offset setting:

• Documentation

• Section Control

• Guidance



GPS Height

Height offset measures the vertical distance from the GPS receiver to the ground. Measure from the top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Utility Vehicle

GPS Lateral Offset

Lateral offset is the lateral distance from center point of the machine to center point of the GPS receiver.

The following applications require Lateral Offset setting:

• Guidance

• Coverage Map

Instructions for Measuring GPS Lateral Offset



GPS In-line Offset

In-line offset is the in-line distance from fixed axle to the GPS receiver.

The following applications require In-line Offset setting:

• Documentation

• Section Control

• Guidance



GPS Height

Height offset measures the vertical distance from the GPS receiver to the ground. Measure from the top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Cotton Harvester

GPS Lateral Offset

Measures lateral distance (left or right) from center line of machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of center line of machine. To input a measurement other than 0.0, Left or Right must be selected.

The following applications require GPS Lateral Offset settings:

• Guidance

• Coverage Map

Instructions for measuring GPS Lateral Offset



GPS In-line Offset

Measures in-line distance from center of non-steering axle on machine to center of GPS receiver.

The following applications require GPS In-line Offset settings:

• • Documentation

  • Section Control

  • Guidance

Instructions for measuring GPS In-line Offset



GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height

Sugar Cane Harvester

GPS Lateral Offset

Measures lateral distance (left or right) from center line of machine to center of GPS receiver. This value should be set to 0.0 unless GPS receiver is offset left or right of center line of machine. To input a measurement other than 0.0, Left or Right must be selected.

The following applications require GPS Lateral Offset settings:

• Guidance

• Coverage Map

Instructions for measuring GPS Lateral Offset



GPS In-line Offset

Measures in-line distance from center of track to center of GPS receiver.

The following applications require GPS In-line Offset settings:

• Documentation

• Section Control

• Guidance

Instructions for measuring GPS In-line Offset



GPS Height

Measures vertical distance from GPS receiver to ground. Measure from top of green portion of GPS receiver to ground.

Instructions for measuring GPS Height
