Quick LinksQuick LinksCurve Compensation displays the current speed of each row unit. When curve compensation is engaged and the implement is turning, the degree of turn (yaw rate) and variation in row unit speed can be observed. The seed meter speeds automatically adjust to maintain an accurate target population for each row.
Curve Compensation— displays the status of the compensation. Use the toggle button to enable or disable Curve Compensation. The curve compensation icon indicates the current state of the feature. |
ON/OFF |
Left Turn— icon appears when compensation is ON during a left turn. |
Left Turn |
Right Turn— icon appears when compensation is ON during a right turn. |
Right Turn |
Straight— icon appears when compensation is ON while traveling straight. |
Straight |
No Icon— appears when compensation is OFF. All of the meters mirror the tractor speed regardless of a turn.
Yaw Rate— displays the current direction and degree of turn that the implement is experiencing. |
Yaw Rate |
NOTE: Yaw rate is not active when curve compensation is turned off.
Row Unit Speed— displays the two rows with the fastest and slowest speed, the tractor speed, and each row unit speed in a bar graph. |
Slowest Row— shows the row number (R_) of the slowest row unit and the current speed. |
Slowest Row |
Fastest Row— shows the row number (R_) of the fastest row unit and the current speed. |
Fastest Row |
Tractor Speed— is provided from the source selected in Advanced Settings. |
Tractor Speed |

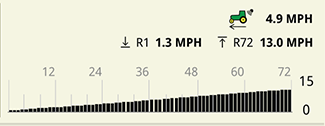

Bar Graph— displays the speed of each row unit. The height of each bar in the graph increases as the speed of a row unit increases. Select an area of the graph to zoom in to that area. The selected area is outlined with a yellow box that is moveable with the adjustment dial.
Row Unit Speed Graph
Population Graph with Selected Area |
Adjustment Dial |
NOTE: Select the tab to exit the zoom area at any time.
