Measuring Center of Rotation

1. Apply draft load and ballast that is expected during operation.

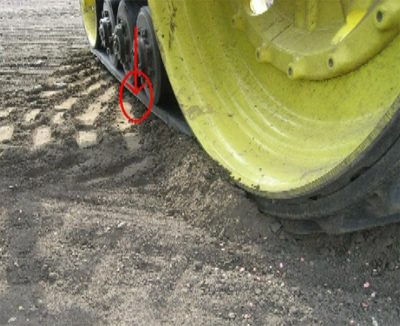

2. Make a turn at slow speed until soil builds up on outside track as shown below (approximately 45 degrees).

3. Measure from center of rear axle to point where soil begins to build on outside track.

Measurement Best Practices

1. Implement dimensions may shift in operation. Measurements should be taken with the implement engaged in the ground to achieve best accuracy.

2. Hold tape measure straight in vertical or horizontal directions.
