Select Delete Steamer to delete current steamer settings.
If your machine configuration includes a steamer, enter the steamer dimensions for accurate guidance and documentation.
|
Select Delete Steamer to delete current steamer settings. |
|
Lateral Offset
Lateral distance from center point of the machine to center point of the working width of implement.
The following applications require Lateral Offset setting:
Mapping
Guidance
Instructions for Measuring Lateral Offset

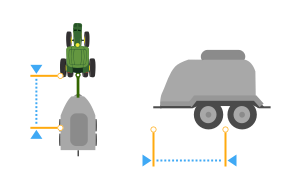

Center of Rotation
In-line distance from connection point to implement’s center of rotation while in working position. Usually, this is where load-bearing parts of the implement make contact with the ground.
Center of Rotation offset is important to accurately model trailing action of implement around curves.
The following applications require Center of Rotation setting:
Mapping
Work Setup
Guidance
AutoTrac Turn Automation
NOTE: Measure center of rotation while the implement tool is engaged.
Instructions for Measuring Center of Rotation

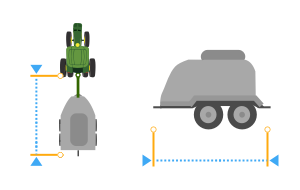

Rear Connection
In-line distance from the connection point to the implement's rear connection point.
The following application requires Rear Connection setting:
Mapping
