Quick LinksQuick LinksSingulation allows you to view the frequency of multiple seeds and skipped seeds detected by the seed sensor.
Multiples— displays the overall average (Avg) number of multiple seeds released at once from the meters. It also displays the row number (R_) for the row with the highest percentage of multiples. |
Multiples |
Skips— displays the overall average (Avg) number of skipped seeds from the meters. It also displays the row number (R_) for the row with the highest percentage of skips. |
Skips |
NOTE: Values approaching an alarm limit highlight in amber. Values outside an alarm limit highlight in red.
Singulation— displays the row number (R_) (over the bar graph) for the row with the lowest overall singulation.
Singulation Graph

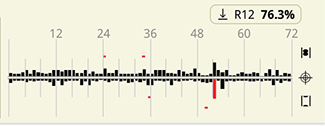

Bar Graph— displays the singulation for every row unit. Each bar over the target line represents an increase in the percentage of multiples. Each bar under the target line represents an increase in the percentage of skips. Select an area of the graph to zoom in to that area. The rows in the selected area expand into the upper screen area. The selected area is outlined with a yellow box that is moveable with the adjustment dial.
Population Graph with Selected Area |
Adjustment Dial |
NOTE: Select the tab to exit the zoom area at any time.
