Dimensions | Center of Rotation

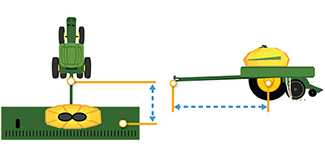

Dimensions | Center of Rotation is the lateral distance from the drawbar pivot point to the rear wheels.

Procedure to Modify:

IMPORTANT: Measure along the implement centerline, not at an angle.

1. Measure from the drawbar pin or implement pivot pin to the implement main frame wheel axle.

Center of Rotation

2. Enter the value using the number pad and then select OK to save your entry or Cancel to close the page without saving.
