Row Crop Tractor
Locations for measuring Connection Offset vary by connection type. Measure from rear axle of machine to connection point of implement.
Locations for measuring Connection Offset vary by connection type. Measure from rear axle of machine to connection point of implement.

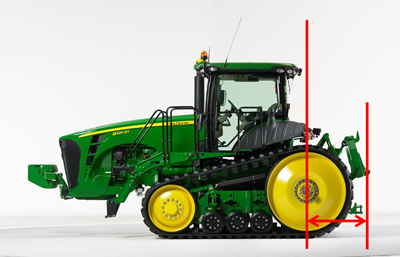

Measure from the rear axle of machine to the connection point of the implement.

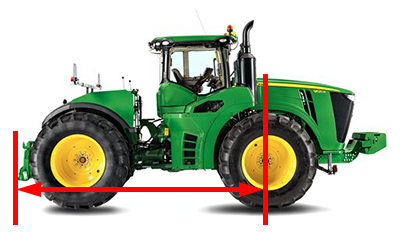

Measure from the Center of Rotation to the connection point of the implement.
Measure from the rear axle of the machine to the connection point of the implement.
Measure from the non-steering axle of the machine to the connection point of the implement.
Measure from the rear axle of machine to the connection point of the implement.

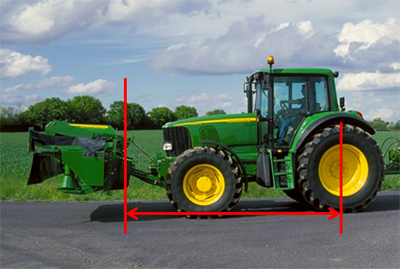

Measure from the non-steering axle of machine to the connection point of the implement.
Measure while machine and implement are in a straight-line, operating position.
Hold tape measure straight in vertical or horizontal directions.
