Measure Work Point

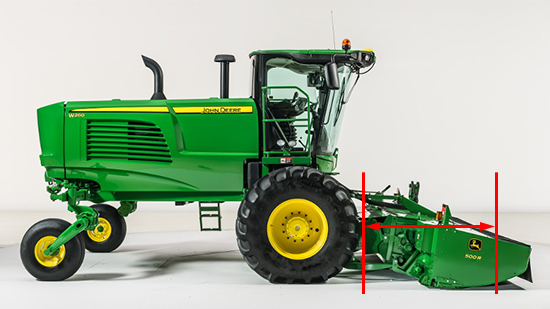

Measure distance from the connection point to the point where the crop is cut.

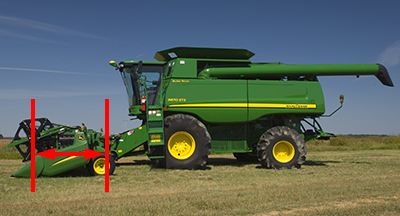

Measure distance from the connection point to the point where the crop is cut.

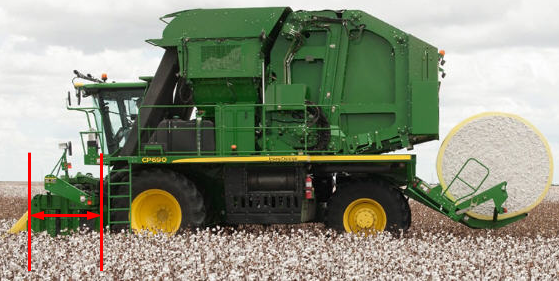

Measure distance from the connection point to the point where the cotton is removed.

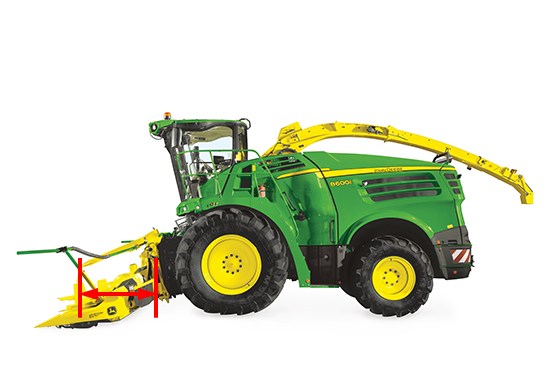

Measure distance from the connection point to the point where the crop is cut.

Measurement Best Practices

  1. Measure while machine and implement are in a straight-line, operating position.

  2. Hold tape measure straight in vertical or horizontal directions.
