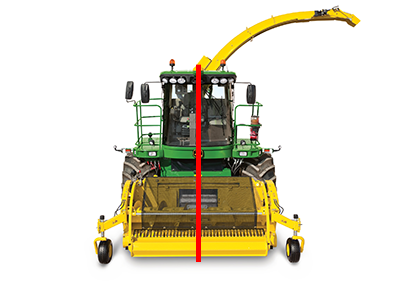

Measure lateral distance from the center point of the machine to center point of the working width of the header. This value should be set to 0.0 unless header is offset to the left or right of the machine center line. To input a measurement other than 0.0, Left or Right must be selected.

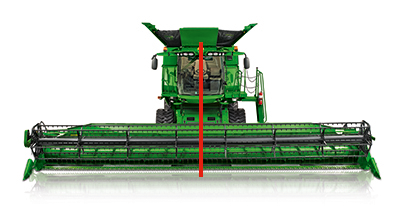

Measure lateral distance from the center point of the machine to center point of the working width of the header. This value should be set to 0.0 unless header is offset to the left or right of the machine center line. To input a measurement other than 0.0, Left or Right must be selected.

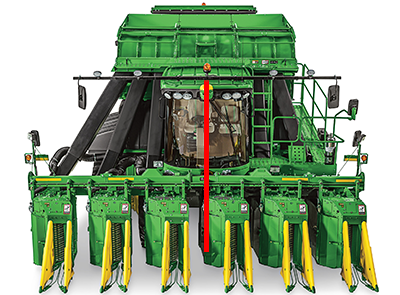

Measure lateral distance from the center point of the machine to center point of the working width of the row units. This value should be set to 0.0 unless the row units are offset to the left or right of the machine center line. To input a measurement other than 0.0, Left or Right must be selected.
Measure while machine and implement are in a straight-line, operating position.
Hold tape measure straight in vertical or horizontal directions.
