Measuring Front Axle

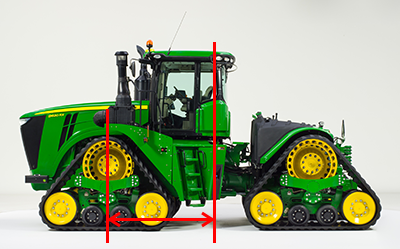

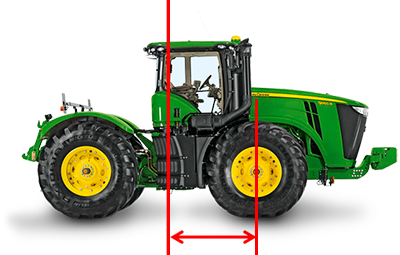

Measure from articulation point to center of front axle. Articulation point is pivot point of machine when making a turn.

Measurement Best Practices

1. Measure while machine and implement are in a straight-line, operating position.

2. Hold tape measure straight in vertical or horizontal directions.
