Measuring Row Width

This measurement is distance between rows or nozzles. For example, on planters, measure from center of one engaged row to center of next engaged row.

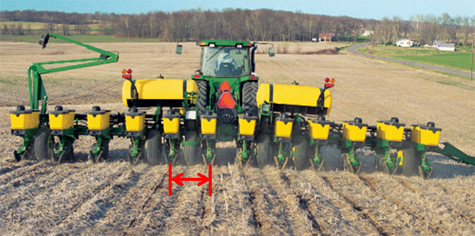

Planters with single linear rank

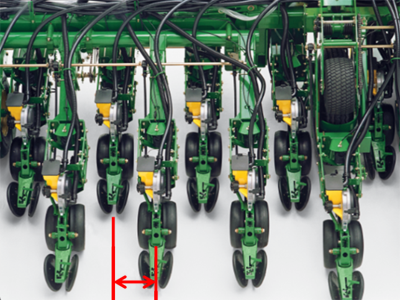

Planters with multiple linear ranks

Measurement Best Practices

1. Measure while machine and implement are in a straight-line, operating position.

2. Implement dimensions may shift in operation. For best accuracy, measure dimensions with implement engaged in ground.

3. Hold tape measure straight in vertical or horizontal directions.
