Measuring Work Point

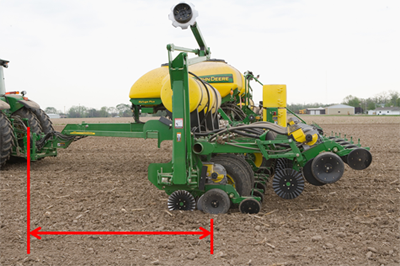

Measure work point from connection point to the seed drop point or to application point of the most important product.

Measurement Best Practices

1. Measure while machine and implement are in a straight-line, operating position.

2. Implement dimensions may shift during operation. For best accuracy, measure dimensions with the implement engaged in the ground.

3. Hold the tape measure straight in vertical or horizontal directions.
