Measure from the center of rotation to the location where product is applied to the ground.
Planter

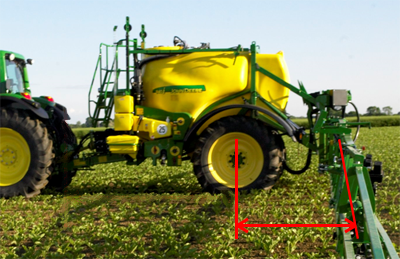

Sprayer

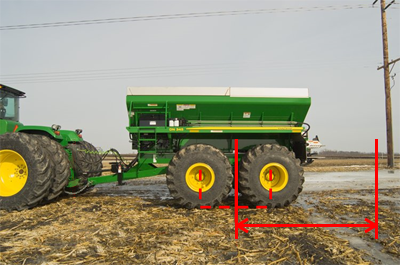

Spreader

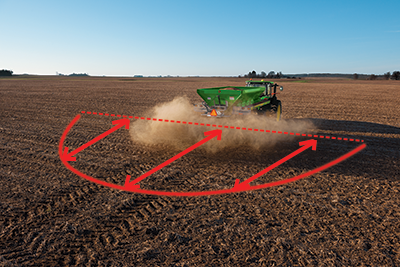

Non-Linear
The display supports non-linear and multi-rank implements with up to five ranks. The AEF ISOBUS implement needs to provide this functionality. Even if the implement supports more than five ranks, it must be configured for five or fewer ranks. Use the ISOBUS VT to configure the implement.
Measure distance between the center of rotation (zero line) and the section. If the section is in front of the zero line, enter a negative offset distance.
Measure while machine and implement are in a straight-line, operating position.
Implement dimensions may shift in operation. For best accuracy, measure dimensions with implement engaged in ground.
Hold tape measure straight in vertical or horizontal directions.
