Measuring Pivot Offset

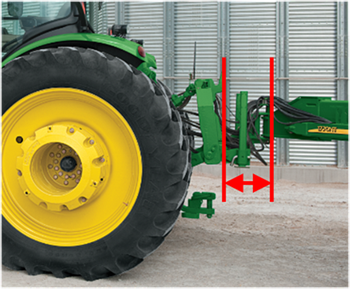

Measure from rear 3-point hitch to pivot point of implement.

Measurement Best Practices

1. Measure while machine and implement are in a straight-line, operating position.

2. Implement dimensions may shift in operation. For best accuracy, measure dimensions with implement engaged in ground.

3. Hold tape measure straight in vertical or horizontal directions.
